Quad Voltage Control Switch

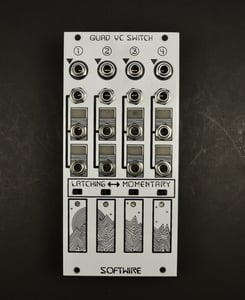

Image of Quad Voltage Control Switch


The Quad Voltage Control Switch is a replacement for the Octal VC Switch with added functionality and in a smaller package. Consisting of 4 separate Bi-directional (2:1 or 1:2) switches controlled by either capacitive touchpads or a gate/cv signal. The switch threshold voltage is controlled by a trim-pot on the front panel allowing a -5/+5 signal to trip the switch. Each VC switch can operate in Momentary mode or Latching mode with a front panel switch to select the mode. When no signal is plugged into the common point of the switch an 8v gate signal is output through the active node for trigger or gate control
